FlexiForce Quickstart Board


Nabestelling mogelijk

Print waarmee de Flexiforce sensoren eenvoudig kunnen worden omgezet naar een 0…5V signaal voor prototyping of integratie in product.

Nabestelling mogelijk



FlexiForce™ Quickstart Board

The Quickstart Board is a finished single voltage source circuit designed for easy integration of FlexiForce™ sensors. It provides a 0-5V analog voltage output that can be used as an input on your microcontroller or third-party data acquisition system. The Quickstart Board contains:

  • (1) FlexiForce Quickstart Board
    • Dimensions: 1.25” x 1.25”
    • Input: 3.3V – 9V
    • Output: 0V – 5V nominal (Vin ≥ 5V)
  • (1) battery clip
  • (2) FlexiForce A201 sensors*
    • A201-1
    • A201-25

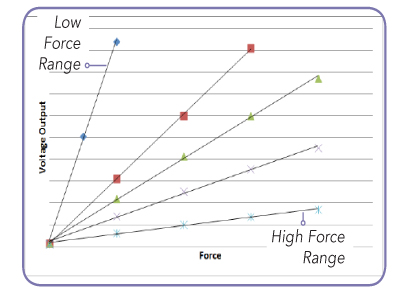

  • Signal conditioning that allows the ability to adjust or

    modify dynamic range

  • Eliminates time developing circuits
  • Perfect for a plug and play product to drop into a design

*While the Quickstart Board includes two FlexiForce A201 sensors, it can be used to test any other standard FlexiForce sensor, sold separately. Standard sensors are available in a variety of lengths and force ranges, and can also be customized to fit your product’s needs. Note, if used with the HT201 or the ESS301 sensors, the electronics should be isolated from harsh environments.
